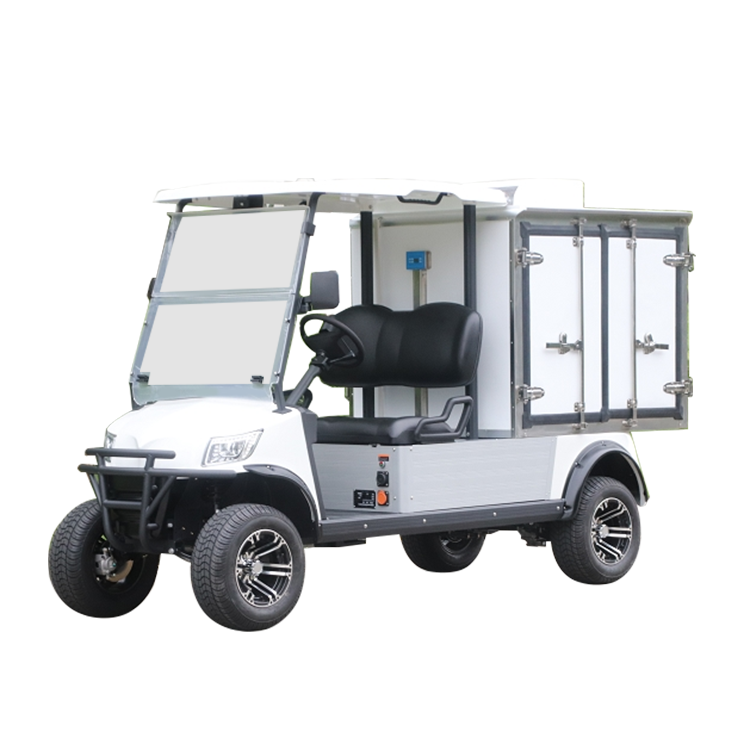

1. Designed to satisfy the transportation needs of carrying perishable goods at specific temperatures with refrigerator.
2. Thermal insulation compartments can effectively keep cargo at a constant temperature during driving.
3. Saving transportation costs with electric power.
4. 5KW electric AC motor Provides powerful driving and climbing ability.
5. Regenerative braking to near zero speed.
6. Quick and efficient battery charge maximizes up-time.
7. Vertically integrated production process ensures premium quality and reliability.
| Motor | AC 48V 5KW | Driving Range | 70 KM |
| Controller | 48V 450A | Speed (km/h) | 25-35 km/h |
| Battery | Leoch AGM Battery 6V * 8 PCS 3-EVF-225 Ah/3HR | Turning Radius | 4.5 m |
| Charger | OnBoard 48V 25A Charger | Brake Distance | 4.5 m |
| Dimension of Rear Insulated Carbinet with Refrigeration | 1422*1120*1100 mm | Tire | 12 inch aluminium wheel 225/55B12 street tire DOT & Emark Certificated |
| Wheel base | 2410 mm | Dimension | 3550*1280*1860 mm |
| Front Tread/Rear | 925 mm / 990 mm | Climbing Capacity | 20 km/h |
| Standard Configuration | 1. Steering system: Self compensating "rack & pinion" steering 2. 7 inch speedometers with back-up camera 3. Accelerator: Adjustable Inductive Accelerator Continuously Variable Speed System 4. Driving mode: Rear axle two stage deceleration, motor direct driving 5. Beverage holders: 4 cups drink holders 6. Windshield: DOT Glass Windshield with wiper 7. Score card holder: On steering wheel 8. Roof: PP plastic 9. Refrigeration Unit: Control the Temp rang from 4 degree to 6 degree, Control panel set at the backside of the carts, Power 320W; Cooling Capacity: 680W When the carts runing, it will use the battery power. When the cart parking, it can switch to use the residential power(AC) | ||
