Lifted Golf Cart DH-J2+2

Lead-acid batteries / Lithium batteries /(solar-powered)(optional)

Special-duty utility cars

Import main parts

View video     Brochure Mars series Golf Cart


  • Golf Cart
  • Golf Cart
  • Golf Cart
  • Golf Cart
  • Golf Cart

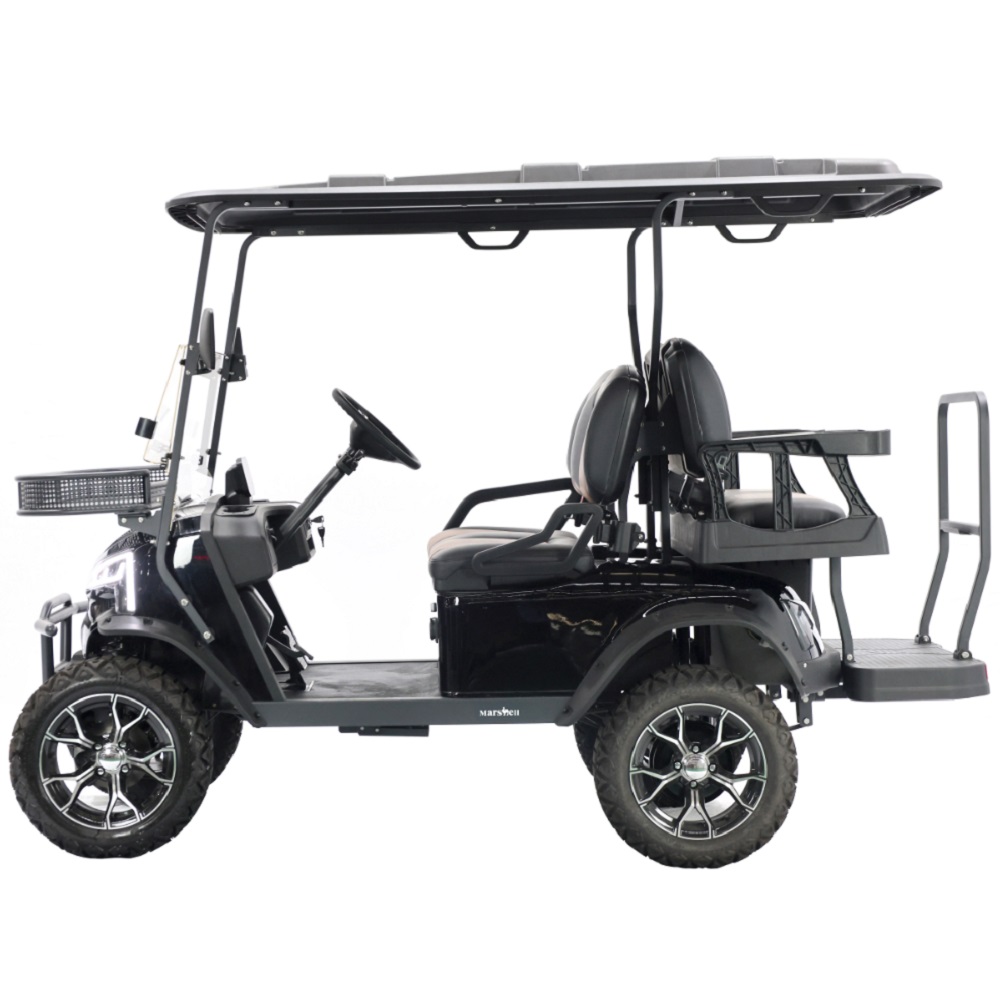

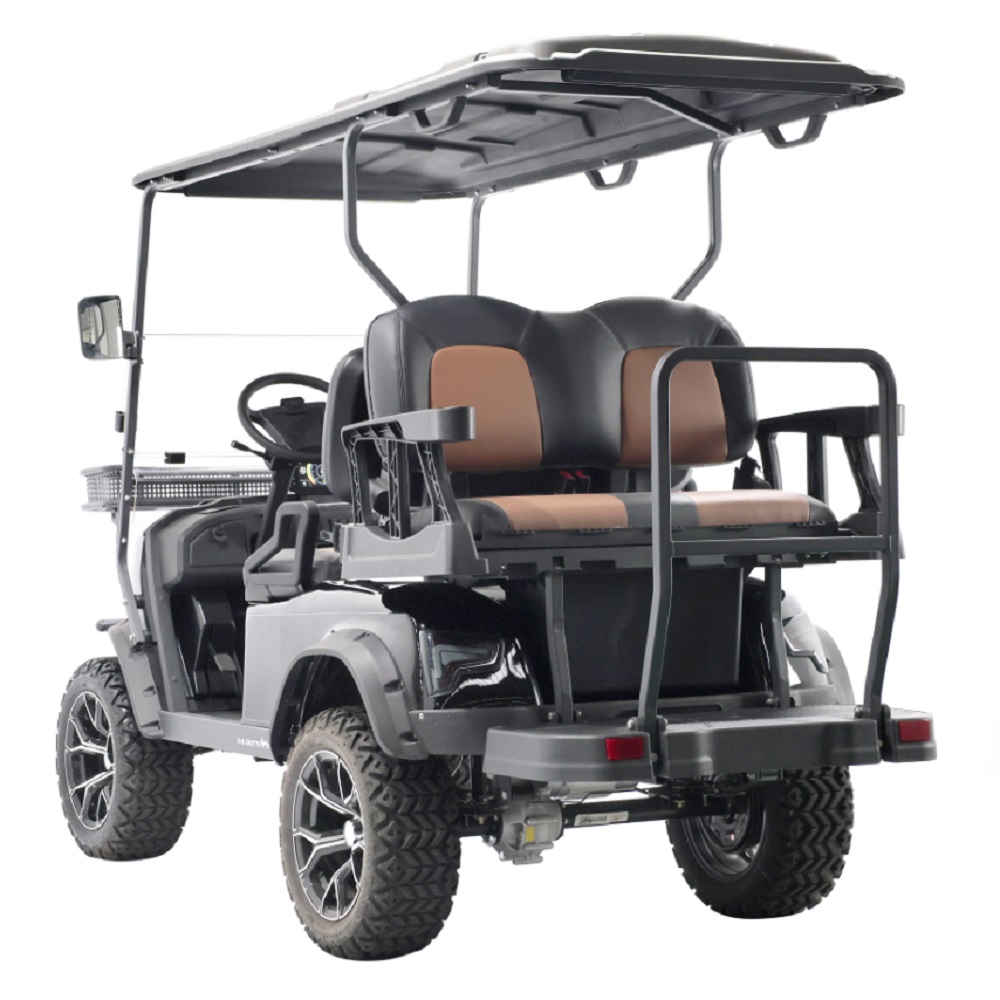

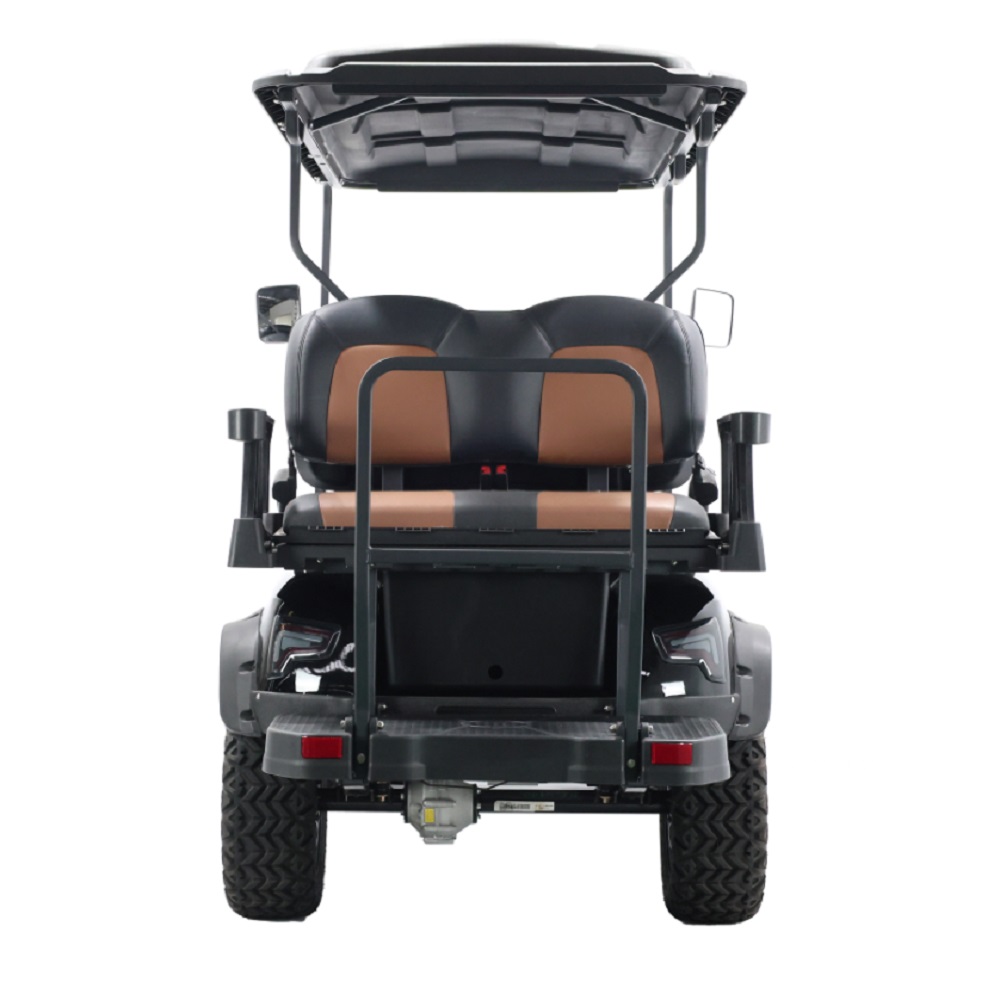

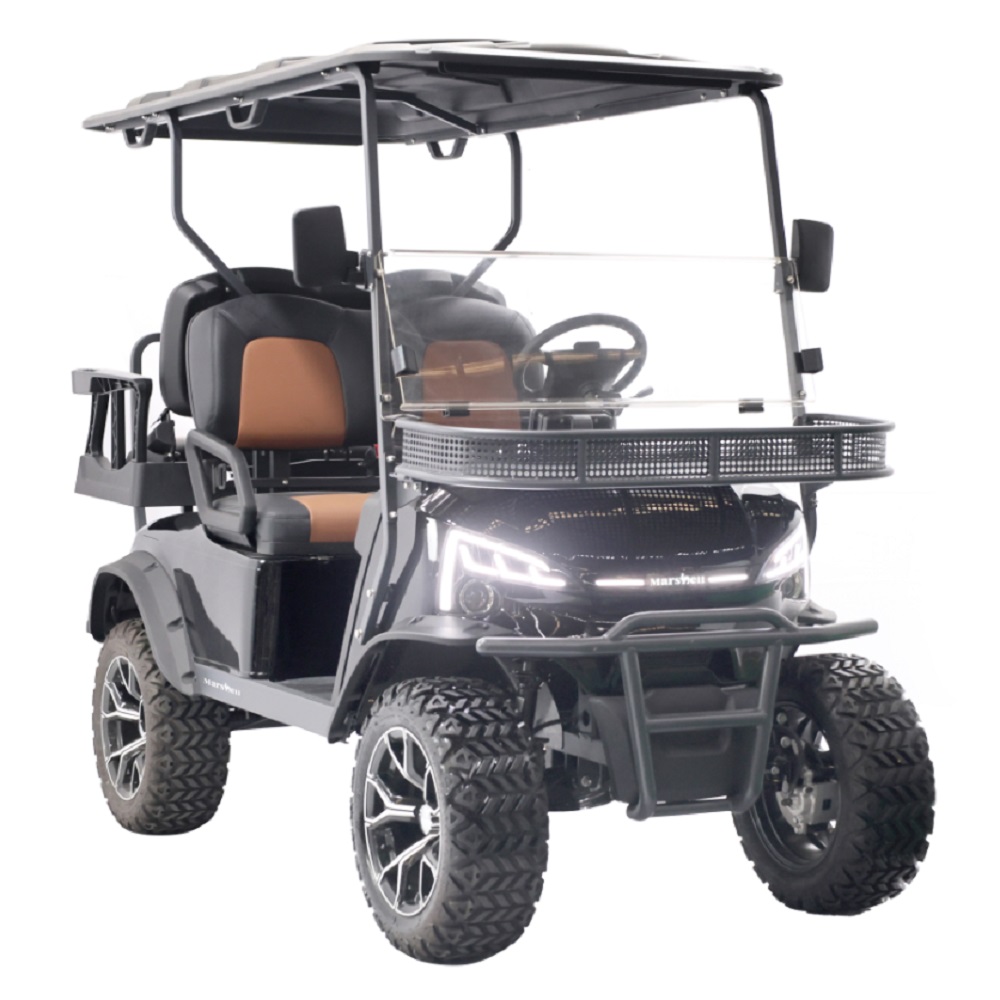

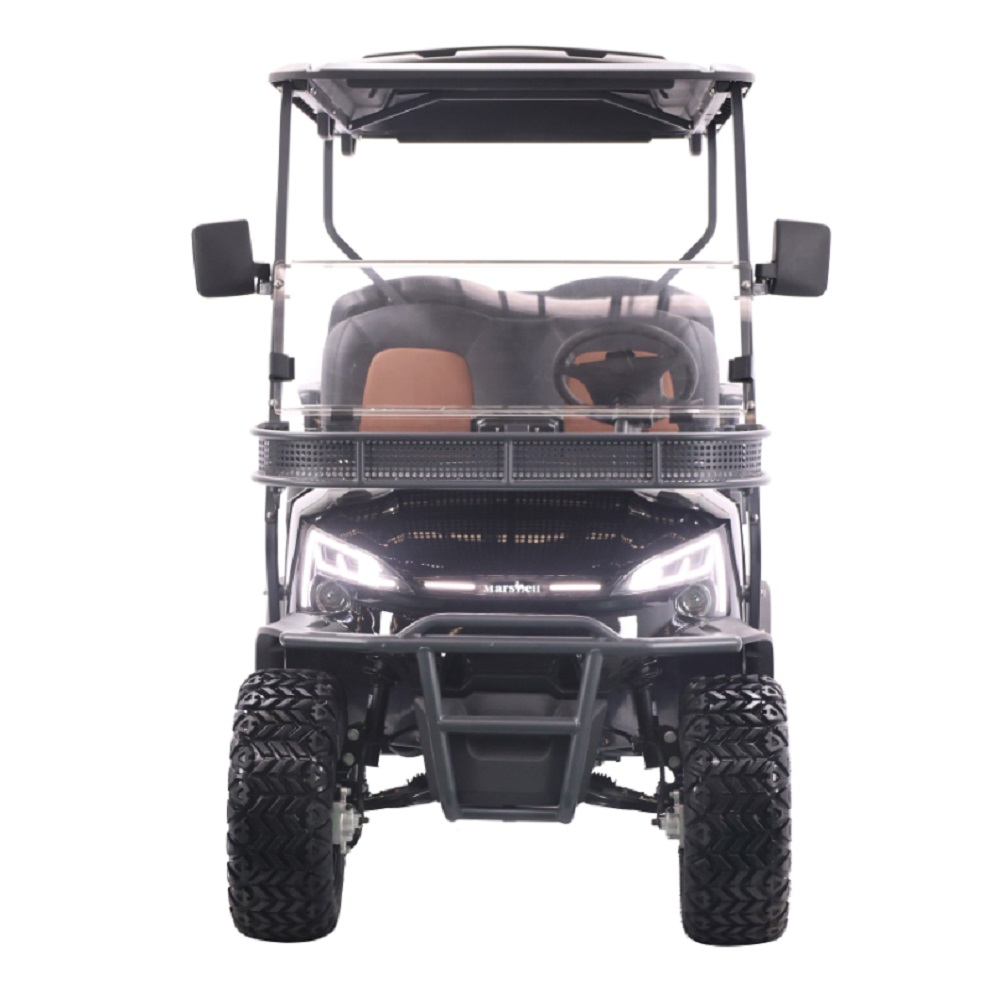

Lifted Golf Cart DH-J2+2

Electric Lifted Golf Cart Sell Points

1.Front Macpherson Independent Suspension + Rear Trail Arm Suspension

2. Foaming Seats, Comfortable Electric Lifted Cart

3.  All Lights are LED Lights

4. Featured 2+2 seats for a more convenient group drive experience.


Electric Golf Cart DH-J2+2 Specifications
Motor AC 48V 4KW Driving Range70 km
Controller  48V 400A Speed (km/h) 30 km/h
Battery

Leoch LDC battery 8V * 6 PCS

Turning Radius3.1 m
Charger On Board Charger 48V 25A Brake Distance5  m
Ground Clerance170 mm Tire10-inch steel rim wheel terrain tire
Wheel base1670 mm Dimension3160*1260 *2050 mm

Rear Seat

Rear Flip Flop Seat Plastic Molded

Brake System Rear Mechanical Drum Brake
Front Tread/Rear

950 mm / 1000mm

Climbing Capacity20%
Optional parts

1. Battery: Available for Trojan T 875, T106, US Battery 8V, and 6V     2. Caddy Cooler;   3. Ball washer

4.Side view mirror and rearview mirror;   5.Seat belts(Two points retractable or three points  retractable)

6. Rain Cover;  7. Sunshine Curtain;    8. 10-inch aluminum alloy rim with 205/50-10 size turf tire;                                                  9. Speedo(Multifunction, can show time, speed, driving range, battery capacity, and rear view when reversing) 10. Rear Cargo box;
