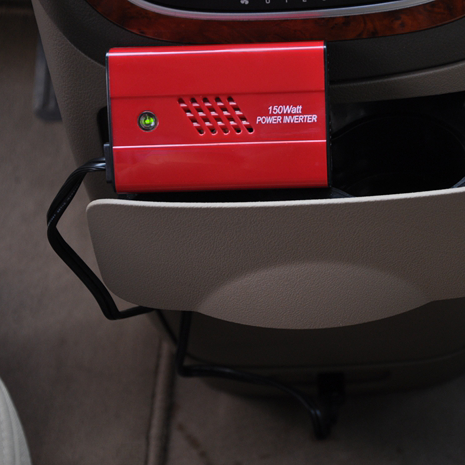

1. Converts vehicle battery power into USB and AC power.
2. Includes one AC OUTLETS AND ONE 2.1A USB port.
3. USB port-charge iPod, smartphones, and many other USB devices.
4. Short circuit overload, over-temperature, under-voltage and over-voltage.
5. Available protection: overload protection, input reverse protection, short circuit protection.
Model | MSI-100B | MSI-150R | MSI-400R |
ContinuousOutputPower(Watt) | 100 | 150 | 400 |
Output PeakPower(Watt) | 200 | 300 | 800 |
InputVoltage (DC) | 12V(11~15V)/24V(21~29) | ||
OutputVoltage(AC) | 100~120V/220~240V | ||
Frequency | 50Hz/60Hz±3Hz | ||
OutputWaveform | Modified sine wave | ||
Efficiency | 85~90% | ||
LowBattrey-voltageAlarm (Volt) | 10.5V±0.5V/21±1V | ||
Low Battrey-voltageShutdown(Volt) | 10V±0.5V/20±1V | ||
AvailableProtection | overloadprotection,inputreverseprotection,shortcircuitprotection | ||
Overtemperatureshutdown | <65°C | ||
CoolingMode | By Fan | ||
ReplaceableFuse | 15A*1pc | 20A*1pc | 25A*2pc |
Accessory | Alligator clips(included) | ||
Dimension (L*W*H)mm | 73*180 | 105*70*25 | 160*108*46 |
Weight (KGS) | 0.54 | 0.14 | 0.52 |
