1. The high-quality hydraulic power unit, low noise, low vibration, strong sealing, the lifting speed can be adjusted according to the actual use environment, to ensure that the lifting speed is stable and reliable; #Electric Pallet Truck #
2. Precise electrical limit switch, accurately control the maximum lifting height, prevent damage to the motor.
3. The mechanized design of the control handle makes it convenient for left and right-hand operations, simple operation, and improved driving comfort. The handle is equipped with an emergency reverse switch, which makes the whole operation safer;#Electric Pallet Truck #
4. The drive motor adopts an AC motor, which is maintenance-free, has a long life, has a re-brake function and a slope suppression function, and has excellent driving control.
5. No level to control the driving speed, and meet different driver rhythms. #Electric Pallet Truck #
6. Electromagnetic, regenerative braking system. #Electric Pallet Truck #

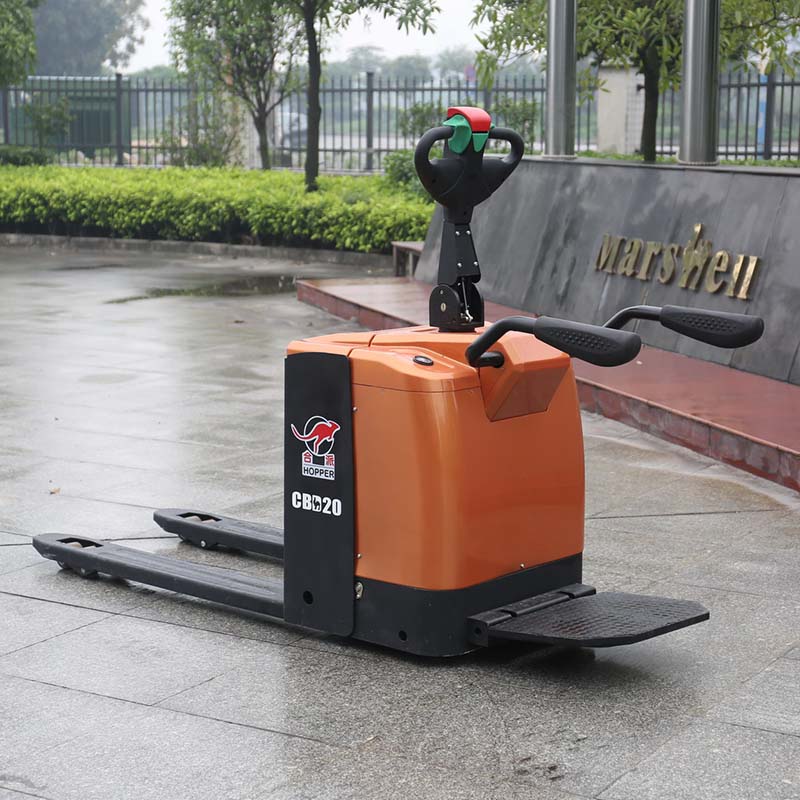

Model | CBD20 | ||
Load capacity/rated load | 2000 | kg | |
Load center distance | c | 600 | mm |
Overall length | L1/L2 | 2267/1781 | mm |
Overall width | b1 | 720 | mm |
Overall height | L | 1200 | mm |
wheelbase | y | 1392 | mm |
Height(to handle) | h6 | 1450 | mm |
Fork height,lowered | h13 | 85 | mm |
Max.lift height | h3 | 205 | mm |
Min.ground clearance | h1 | 35 | mm |
Forks outside width | b2 | 685/540 | mm |
Forks inside width | b4 | 220/365 | mm |
Fork width | e | 160 | mm |
Front tread | b3 | 380/525 | mm |
Max.lift speed unladen | 25 | mm/s | |
Max.lift speed laden | 20 | mm/s | |
Max. Travel speed unladen | 6 | km/h | |
Max. Travel speed laden | 6 | km/h | |
Min. outside turning radius | w | 1600 | mm |
Max. gradability,laden | 5 | % | |
Max. gradability,unladen | 10 | % | |
Weight(unladen) | 585 | kg | |
Battery capacity | 210 | AH | |
Battery voltage | 24 | V | |
Aisle width for lengthways | 1000*1200 tray | 2340 | mm |
Aisle width for lengthways | 800*1200 tray | 2300 | mm |
Container quantity | 20GP/40HQ | 16/34 | unit |
