Cleaning efficiency 5000 ㎡ /h
Squeegee width 860 mm
Sewage tank capacity 150 L
Battery working time 5h
1. The product has the function of automatic loading and unloading brush plate, which is more convenient to use.
2. High pressure diaphragm pump is used for water supply, which makes flow adjustment more convenient and water supply is more stable.
3. With integrated circuit control, the performance is more stable and the maintenance is more convenient.
4. With the membrane panel touch switch, the service life is longer and the operation is more convenient.

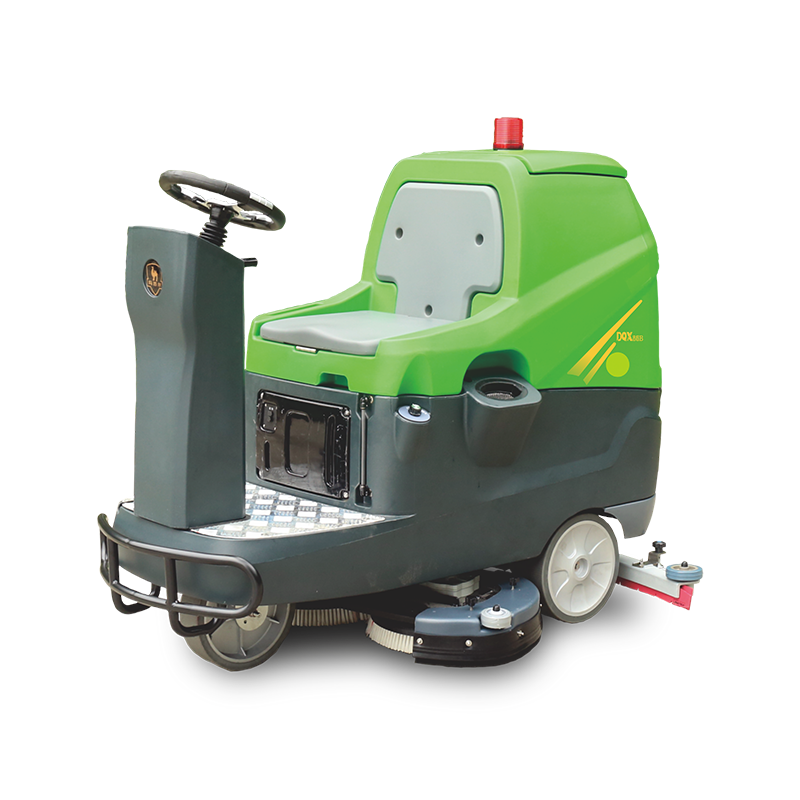

| Model | DQX86B | |
| Dimension(length*width*height) | 1600*950*1375 | mm |
| Cleaning width | 860 | mm |
| Cleaning Efficiency | 5000 | m²/h |
| Weight (with battery) | 370 | kg |
| Motor power | 2600 | W |
| Driving motor | 900 | W |
| Brush motor | 2*550 | W |
| Suction motor | 550 | W |
| Voltage | 24 | V |
| Running speed | 5.6 | km/h |
| Astern speed | 3.5 | km/h |
| Clean water tank capacity | 130 | L |
| Sewage tank capacity | 150 | L |
| Spueegee width | 1120 | mm |
| Sound | 65 | DB |
| Brush pressure | 40 | KG |
| Battery working time | 5 | H |
| Climbing capacity | ≤20 | % |
| Battery pack | 4*6V | |
| Charging time | 8-10 | H |
| Charger | 24V | |
| Packing dimension | 1730*1020*1420 | mm |
| Container quantity(20GP/40GP/40HQ) | 6pcs/14pcs/14pcs | pcs |
