Electric Golf Cart DG-C4+2

Industry leading electronics controller

High performance

Good after-sale service

Brochure DG series

  • club car
  • club car
  • golf cart
  • golf cart
  • electric golf car
  • 6 seater golf cart

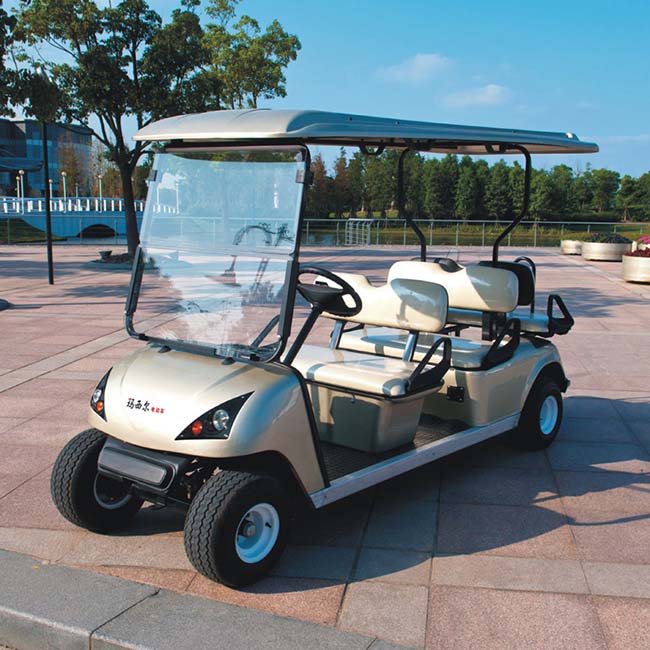

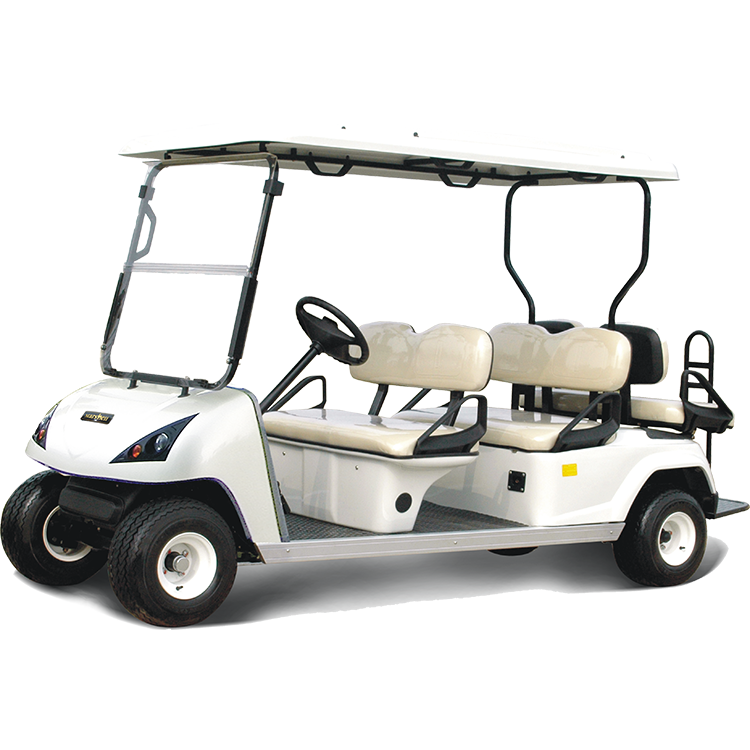

Electric Golf Cart DG-C4+2

Electric Golf Cart DG-C4+2 Features

1. Good aftersale-service, as most parts are manufactured by ourselves;

2. Has CE certificate for whole carts and for main parts also pass CE, UL, SAA for different carts;

3. Equipped with maintenance-free battery, high frequency smart chargers, Marxon 48V 450A Controller;

4. Brake system: Rear wheel Mechanical Drum Brake;

5. Option parts:Full enclosure weather curtains;Split Windshield; 10''Alloy rim and tyre; Caddycooler; Rear&Side mirror; Different colors and option parts;

6. Good hill climbing ability, the system allows you to customize the car to fit your course;

7. Smart steering system, easy to make forward and backward;

8. Good climbing ablity and can park easily on Hills;

9. Can be easily to be modified to Utility carts.

Electric Golf Cart DG- C4+2 Specifications
Passenger Capacity :6 Gross Weight640kg
Battery:8V 165Ah/20HR * 6 PCS Carrying capacity450kg
MotorAC 48V 5KW Steering "Rack& Pinion" Steering
ControllerMarxon Controller 48V 450A brakes Rear wheel Mechanical Drum Brake & Mechanical parking
ChargerHigh-Frequency Smart Charger 48V 25A tire 18*8.5-8 ,8 inch steel rim wheel tire with plastic cover
Max. Speed18-24km/h Overall dimension(L*w*h)3400*1200*1900mm
Max. traveling Range 65-70km Front/Rear Wheel Tread 870/980 mm
Climbing Capacity20% Qty per container4pcs/20FT, 10pcs/40GP, 12pcs/40HQ
Wheel Base 2420 mm Standard parts Golf Bag attachments
Minimum turning radius 4.5m Optional parts

Lighting system, Side mirror, Inner mirror, Seat belts, Weather enclosure, Sunshade curtain, police light, PA system, CD Player, Caddy cooler, Sand bottle, Rear seat kits, Cargo box,10" Alloy wheel, Trojan Battery
