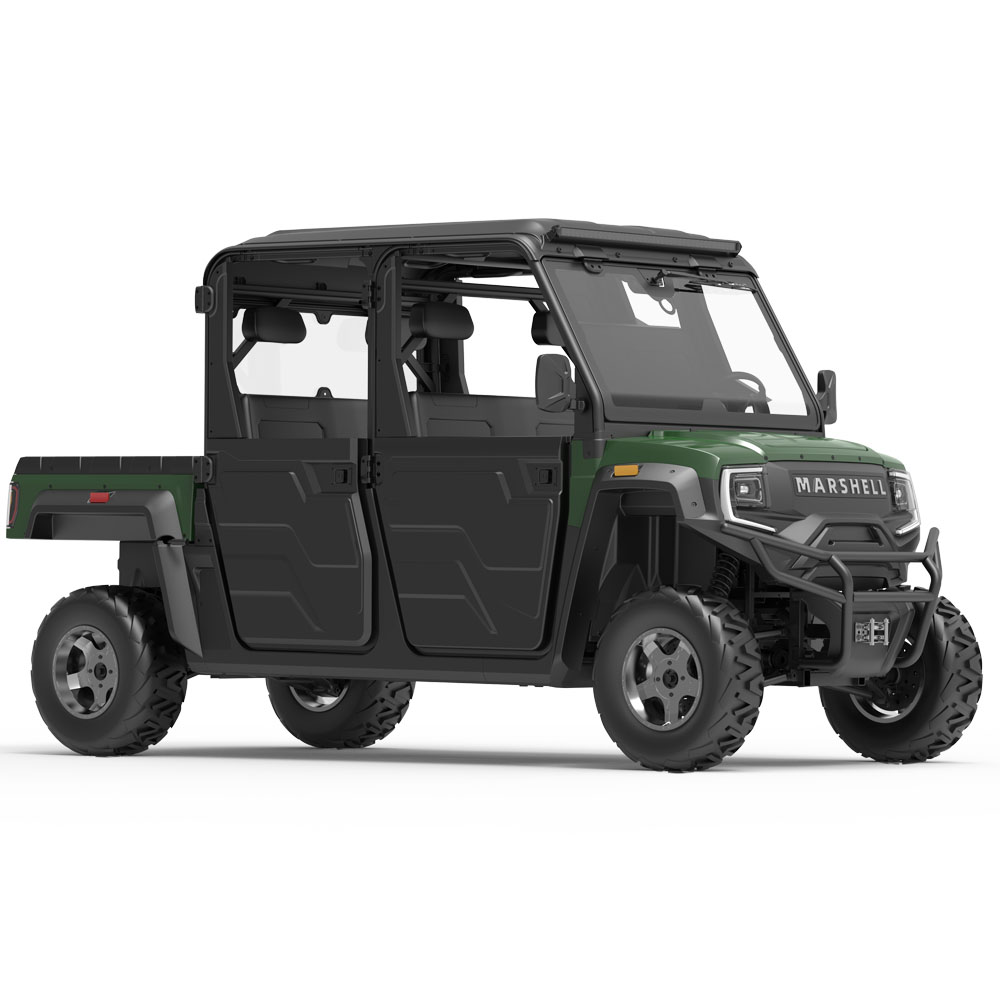

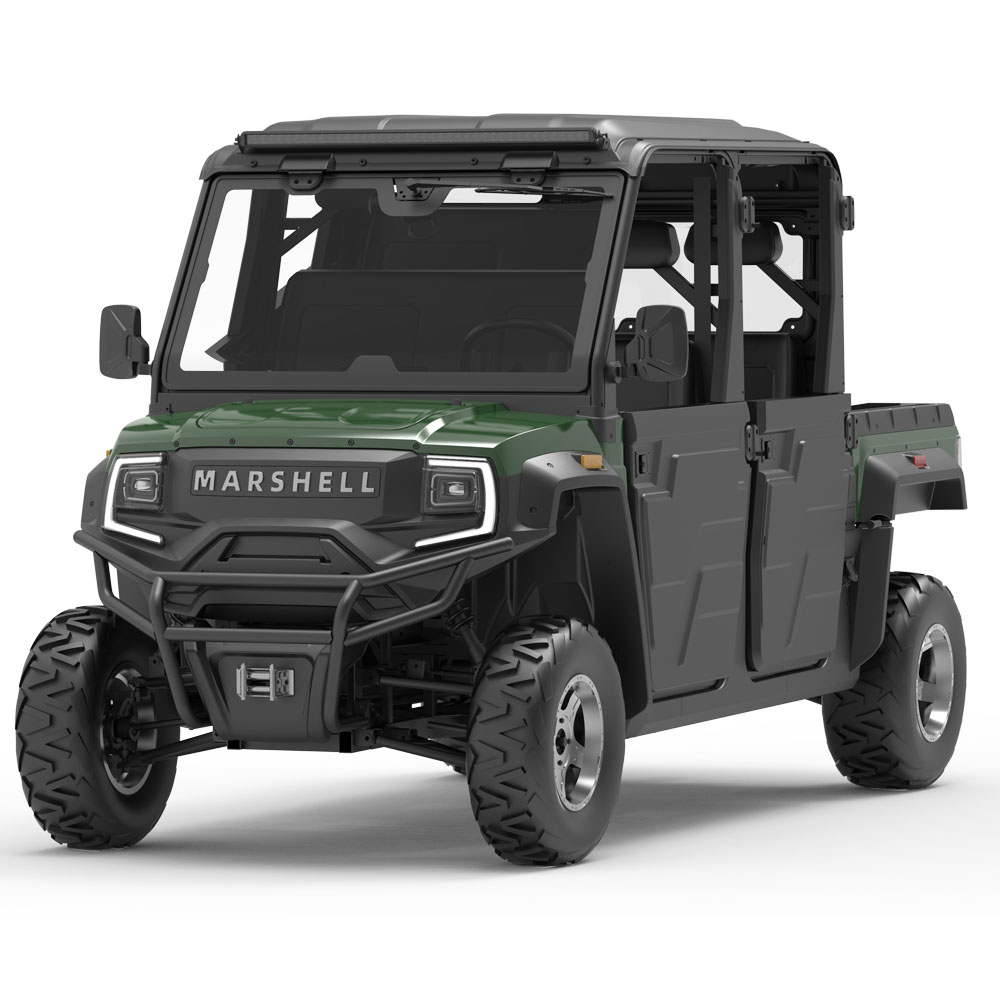

Marshell UTV Electric 4 Wheel Drive DV-T4

Suitable for various complex working conditions.

Permanent magnet synchronous motor control system

Excellent comfort with high performance controller

LiFePO4 Battery System with Built-In BMS

Real-Time 4WD System

Excellent Carrying Capacity

UTV Brochure



Marshell UTV Electric 4 Wheel Drive DV-T4

c5a8514865eefae906d78d07bef75c0.png645a2a60a0b7ad8b7029a42a164f4a5.png78e34a48bb557a387797752eeb82ffa.png合页.jpg


  1. 1. Marshell Electric UTV is Suitable for various complex working conditions. It can go through harsh environments such as dunes, mud, and rainforests and is ideal for mountainous areas, farm work, and other scenario.

  1. 2. Real-Time 4WD System. Power precisely distributed to each wheel to conquer the terrain and satisfy the driving experience according to different usage environments.

  1. 3. Excellent comfort. 4-wheel independent double wishbone suspension provides maximum wheel articulation and consistent tire contact on uneven terrain. Maintains stability and comfort under heavy payloads and offers a smoother ride and improved control.

  2. 4. Excellent Excellent Carrying Capacity. Engineered for real demands with total payload capacity 340 kgs and cargo bed capacity 180 kgs, which is effective solution for industrial and farm works.


Electric UTV SPECIFICATIONS
SPECIFICATIONS DV-T4
BASE
Overall Dimension  (L × W × H) 3810*1550*1950 mm / 152*61*77 in
Driving Range 50-90 km / 40-70 miles
Minimum Turning Radius5400 mm / 212 in
Cargo Bed Dimensions (L × W × H) 830*1120*262 mm / 32.7*44*10.3 in
Seating Capacity2
Max Speed 50 km/h / 31 mph
Climbing Capacity 27%(15°)
Payload Capacity 500 kgs / 1100 lb
POWER PMSM Motor 72V 15KW (20HP)
Controller 72V 450A
Battery Charger 72V 20A
Battery(QTY/Type) 76.8V 200 Ah LiFePO4
STEERINGDrive ModeReal-Time 4WD
Service BrakeFour-wheel Hydraulic
Parking BrakeHand Brake
Tires(front/rear)AT26x9-14/AT26x11-14
BODYAuto Tipping Manual
Cargo Bed Three-Point Seat Belt
